500W DZE-S系列 端子接线自散热型DC-DC电源模块
电源尺寸：200*160*57mm
输入电压：300V(200-400V),110V(80-185V),48V(18-36V),24V(18-36V),18V(9-36V),12V(9-18V)
输出电压：48V,28V,24V,15V,12V,5V,3.3V
输出功率：500W
PDF文件：【点击查看】
500W DZE-S系列 端子接线自散热型DC-DC电源模块
|
典型特性
|
|
★高功率密度，超薄设计，让体积做到最小
|
|
★多重保护功能设计
|
|
★采用基板工艺生产，加强了产品可靠性
|
|
★加强电磁兼容设计，可在强电磁环境工作
|
|
★具有低EMC特性，已通过欧盟CE认证
|
|
★一体化灌封加强了防腐、防潮、防震性能
|
|
★抗震性设计，满足军标要求可做车载电源使用
|
|
★专业为小型发射基站和车载移动设备设计
|
|
★具有输入过压、欠压、输出过压、过流、短路保护
|
|
技术参数
|
|
产品型号：
|
DZE500S-■S□-★,DZE500S-■D□-★,DZE500S-■T□-★
|
|
型号说明：
|
■代表输入电压； □代表输出电压；★代表产品级别 参见下面产品级别
|
|
输入电压：
|
■DC 300V(200-400V),110V(80-185V),48V(18-36V),24V(18-36V),18V(9-36V),12V(9-18V)
|
|
输出电压：
|
□DC 48V,28V,24V,15V,12V,5V,3.3V任选
|
|
产品级别：
|
★军工级加 J, 航天级加H, 工业级省略
|
|
输出功率：
|
500W
|
|
电源尺寸：
|
200*160*57
|
|
电压精度：
|
Vo1:＜±1%
|
|
源效应：
|
＜±0.2%
|
|
负载效应：
|
＜±0.5%
|
|
动态响应：
|
400uS
|
|
纹波和噪声：
|
＜1%Vo
|
|
温度系数：
|
<±0.02℃
|
|
工作频率：
|
300KHz
|
|
效率：
|
>85%
|
|
过流保护：
|
>120%
|
|
过温保护：
|
90℃;降温自恢复
|
|
工作环境温度：
|
-25~+55℃(工业级) -40~+70℃(军工级) -55~+85℃(航天级)
|
|
储存温度：
|
-45~+105℃(工业级) -55~+105℃(军工级) -60~+125℃(航天级)
|
|
工作湿度：
|
5%~85%RH
|
|
储存湿度：
|
5%~95%RH
|
|
隔离电阻：
|
500MΩ
|
|
隔离电压：
|
Vin-Vo 1500VDC; Vin-FG 1050VDC; Vo- FG 500VDC
|
|
抗震性：
|
10~55Hz 5g
|
|
抗震性（随机）：
|
频率范围：20~100Hz,+6dB/倍频;80~350Hz,0.04g2/Hz; 350~2000Hz,-6dB/倍频X,Y,Z方向各15min
|
|
冲击（半正弦）：
|
加速度：a=50g±5g冲击时间：8~12ms X,Y,Z方向各6次
|
|
冷却方式：
|
自然冷却
|
|
接线方式：
|
端子接线安装
|
|
MTBF：
|
500000h
|
|
电源部分型号
|
|
|
|
型号
|
功率(W)
|
输入电压(V)
|
输出电压（V）
|
输出路数
|
安装方式
|
PDF下载
|
|
DZE500S-300S48
|
500W
|
300V(200-400V)
|
48V
|
单路
|
端子接线
|
|
|
DZE500S-300S28
|
500W
|
300V(200-400V)
|
28V
|
单路
|
端子接线
|
|
|
DZE500S-300S24
|
500W
|
300V(200-400V)
|
24V
|
单路
|
端子接线
|
|
|
DZE500S-300S15
|
500W
|
300V(200-400V)
|
15V
|
单路
|
端子接线
|
|
|
DZE500S-300S12
|
500W
|
300V(200-400V)
|
12V
|
单路
|
端子接线
|
|
|
DZE500S-300S05
|
500W
|
300V(200-400V)
|
5V
|
单路
|
端子接线
|
|
|
DZE500S-300S3.3
|
500W
|
300V(200-400V)
|
3.3V
|
单路
|
端子接线
|
|
|
DZE500S-110S48
|
500W
|
110V(70-185V)
|
48V
|
单路
|
端子接线
|
|
|
DZE500S-110S28
|
500W
|
110V(70-185V)
|
28V
|
单路
|
端子接线
|
|
|
DZE500S-110S24
|
500W
|
110V(70-185V)
|
24V
|
单路
|
端子接线
|
|
|
DZE500S-110S15
|
500W
|
110V(70-185V)
|
15V
|
单路
|
端子接线
|
|
|
DZE500S-110S12
|
500W
|
110V(70-185V)
|
12V
|
单路
|
端子接线
|
|
|
DZE500S-110S05
|
500W
|
110V(70-185V)
|
5V
|
单路
|
端子接线
|
|
|
DZE500S-110S3.3
|
500W
|
110V(70-185V)
|
3.3V
|
单路
|
端子接线
|
|
|
DZE500S-48S48
|
500W
|
48V(36-72V)
|
48V
|
单路
|
端子接线
|
|
|
DZE500S-48S28
|
500W
|
48V(36-72V)
|
28V
|
单路
|
端子接线
|
|
|
DZE500S-48S24
|
500W
|
48V(36-72V)
|
24V
|
单路
|
端子接线
|
|
|
DZE500S-48S15
|
500W
|
48V(36-72V)
|
15V
|
单路
|
端子接线
|
|
|
DZE500S-48S12
|
500W
|
48V(36-72V)
|
12V
|
单路
|
端子接线
|
|
|
DZE500S-48S05
|
500W
|
48V(36-72V)
|
5V
|
单路
|
端子接线
|
|
|
DZE500S-48S3.3
|
500W
|
48V(36-72V)
|
3.3V
|
单路
|
端子接线
|
|
|
DZE500S-24S48
|
500W
|
24V(18-36V)
|
48V
|
单路
|
端子接线
|
|
|
DZE500S-24S28
|
500W
|
24V(18-36V)
|
28V
|
单路
|
端子接线
|
|
|
DZE500S-24S24
|
500W
|
24V(18-36V)
|
24V
|
单路
|
端子接线
|
|
|
DZE500S-24S15
|
500W
|
24V(18-36V)
|
15V
|
单路
|
端子接线
|
|
|
DZE500S-24S12
|
500W
|
24V(18-36V)
|
12V
|
单路
|
端子接线
|
|
|
DZE500S-24S05
|
500W
|
24V(18-36V)
|
5V
|
单路
|
端子接线
|
|
|
DZE500S-24S3.3
|
500W
|
24V(18-36V)
|
3.3V
|
单路
|
端子接线
|
|
|
DZE500S-18S48
|
500W
|
18V(9-36V)
|
48V
|
单路
|
端子接线
|
|
|
DZE500S-18S28
|
500W
|
18V(9-36V)
|
28V
|
单路
|
端子接线
|
|
|
DZE500S-18S24
|
500W
|
18V(9-36V)
|
24V
|
单路
|
端子接线
|
|
|
DZE500S-18S15
|
500W
|
18V(9-36V)
|
15V
|
单路
|
端子接线
|
|
|
DZE500S-18S12
|
500W
|
18V(9-36V)
|
12V
|
单路
|
端子接线
|
|
|
DZE500S-18S05
|
500W
|
18V(9-36V)
|
5V
|
单路
|
端子接线
|
|
|
DZE500S-18S3.3
|
500W
|
18V(9-36V)
|
3.3V
|
单路
|
端子接线
|
|
|
DZE500S-12S48
|
500W
|
12V(9-18V)
|
48V
|
单路
|
端子接线
|
|
|
DZE500S-12S28
|
500W
|
12V(9-18V)
|
28V
|
单路
|
端子接线
|
|
|
DZE500S-12S24
|
500W
|
12V(9-18V)
|
24V
|
单路
|
端子接线
|
|
|
DZE500S-12S15
|
500W
|
12V(9-18V)
|
15V
|
单路
|
端子接线
|
|
|
DZE500S-12S12
|
500W
|
12V(9-18V)
|
12V
|
单路
|
端子接线
|
|
|
DZE500S-12S05
|
500W
|
12V(9-18V)
|
5V
|
单路
|
端子接线
|
|
|
DZE500S-12S3.3
|
500W
|
12V(9-18V)
|
3.3V
|
单路
|
端子接线
|
|
|
DZE500S-12S05
|
500W
|
12V(9-18V)
|
5V
|
单路
|
端子接线
|
|
|
DZE500S-300D1224
|
500W
|
300V(200-400V)
|
12V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-300D1515
|
500W
|
300V(200-400V)
|
15V 15V
|
双路隔离
|
端子接线
|
|
|
DZE500S-300D1212
|
500W
|
300V(200-400V)
|
12V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-300D0524
|
500W
|
300V(200-400V)
|
5V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-300D0512
|
500W
|
300V(200-400V)
|
5V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-300D0505
|
500W
|
300V(200-400V)
|
5V 5V
|
双路隔离
|
端子接线
|
|
|
DZE500S-300D053.3
|
500W
|
300V(200-400V)
|
5V 3.3V
|
双路隔离
|
端子接线
|
|
|
DZE500S-110D1224
|
500W
|
110V(80-185V)
|
12V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-110D1515
|
500W
|
110V(80-185V)
|
15V 15V
|
双路隔离
|
端子接线
|
|
|
DZE500S-110D1212
|
500W
|
110V(80-185V)
|
12V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-110D0524
|
500W
|
110V(80-185V)
|
5V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-110D0512
|
500W
|
110V(80-185V)
|
5V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-110D0505
|
500W
|
110V(80-185V)
|
5V 5V
|
双路隔离
|
端子接线
|
|
|
DZE500S-110D053.3
|
500W
|
110V(80-185V)
|
5V 3.3V
|
双路隔离
|
端子接线
|
|
|
DZE500S-48D1224
|
500W
|
48V(36-72V)
|
12V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-48D1515
|
500W
|
48V(36-72V)
|
15V 15V
|
双路隔离
|
端子接线
|
|
|
DZE500S-48D1212
|
500W
|
48V(36-72V)
|
12V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-48D0524
|
500W
|
48V(36-72V)
|
5V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-48D0512
|
500W
|
48V(36-72V)
|
5V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-48D0505
|
500W
|
48V(36-72V)
|
5V 5V
|
双路隔离
|
端子接线
|
|
|
DZE500S-48D053.3
|
500W
|
48V(36-72V)
|
5V 3.3V
|
双路隔离
|
端子接线
|
|
|
DZE500S-24D1224
|
500W
|
24V(18-36V)
|
12V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-24D1515
|
500W
|
24V(18-36V)
|
15V 15V
|
双路隔离
|
端子接线
|
|
|
DZE500S-24D1212
|
500W
|
24V(18-36V)
|
12V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-24D0524
|
500W
|
24V(18-36V)
|
5V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-24D0512
|
500W
|
24V(18-36V)
|
5V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-24D0505
|
500W
|
24V(18-36V)
|
5V 5V
|
双路隔离
|
端子接线
|
|
|
DZE500S-24D053.3
|
500W
|
24V(18-36V)
|
5V 3.3V
|
双路隔离
|
端子接线
|
|
|
DZE500S-18D1224
|
500W
|
18V(9-36V)
|
12V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-18D1515
|
500W
|
18V(9-36V)
|
15V 15V
|
双路隔离
|
端子接线
|
|
|
DZE500S-18D1212
|
500W
|
18V(9-36V)
|
12V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-18D0524
|
500W
|
18V(9-36V)
|
5V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-18D0512
|
500W
|
18V(9-36V)
|
5V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-18D0505
|
500W
|
18V(9-36V)
|
5V 5V
|
双路隔离
|
端子接线
|
|
|
DZE500S-18D053.3
|
500W
|
18V(9-36V)
|
5V 3.3V
|
双路隔离
|
端子接线
|
|
|
DZE500S-12D1224
|
500W
|
12V(9-18V)
|
12V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-12D1515
|
500W
|
12V(9-18V)
|
15V 15V
|
双路隔离
|
端子接线
|
|
|
DZE500S-12D1212
|
500W
|
12V(9-18V)
|
12V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-12D0524
|
500W
|
12V(9-18V)
|
5V 24V
|
双路隔离
|
端子接线
|
|
|
DZE500S-12D0512
|
500W
|
12V(9-18V)
|
5V 12V
|
双路隔离
|
端子接线
|
|
|
DZE500S-12D0505
|
500W
|
12V(9-18V)
|
5V 5V
|
双路隔离
|
端子接线
|
|
|
DZE500S-12D053.3
|
500W
|
12V(9-18V)
|
5V 3.3V
|
双路隔离
|
端子接线
|
|
|
DZE500S-300T122448
|
500W
|
300W(200-400V)
|
12/24/48V
|
三路隔离
|
端子接线
|
|
|
DZE500S-300T051224
|
500W
|
300W(200-400V)
|
5/12/24V
|
三路隔离
|
端子接线
|
|
|
DZE500S-300T051212
|
500W
|
300W(200-400V)
|
5/12/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-300T050512
|
500W
|
300W(200-400V)
|
5/5/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-110T122448
|
500W
|
110V(80-185V)
|
12/24/48V
|
三路隔离
|
端子接线
|
|
|
DZE500S-110T051224
|
500W
|
110V(80-185V)
|
5/12/24V
|
三路隔离
|
端子接线
|
|
|
DZE500S-110T051212
|
500W
|
110V(80-185V)
|
5/12/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-110T050512
|
500W
|
110V(80-185V)
|
5/5/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-48T122448
|
500W
|
48V(36-72V)
|
12/24/48V
|
三路隔离
|
端子接线
|
|
|
DZE500S-48T051224
|
500W
|
48V(36-72V)
|
5/12/24V
|
三路隔离
|
端子接线
|
|
|
DZE500S-48T051212
|
500W
|
48V(36-72V)
|
5/12/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-48T050512
|
500W
|
48V(36-72V)
|
5/5/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-24T122448
|
500W
|
24V(18-36V)
|
12/24/48V
|
三路隔离
|
端子接线
|
|
|
DZE500S-24T051224
|
500W
|
24V(18-36V)
|
5/12/24V
|
三路隔离
|
端子接线
|
|
|
DZE500S-24T051212
|
500W
|
24V(18-36V)
|
5/12/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-24T050512
|
500W
|
24V(18-36V)
|
5/5/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-18T122448
|
500W
|
18V(9-36V)
|
12/24/48V
|
三路隔离
|
端子接线
|
|
|
DZE500S-18T051224
|
500W
|
18V(9-36V)
|
5/12/24V
|
三路隔离
|
端子接线
|
|
|
DZE500S-18T051212
|
500W
|
18V(9-36V)
|
5/12/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-18T050512
|
500W
|
18V(9-36V)
|
5/5/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-12T122448
|
500W
|
12V(9-18V)
|
12/24/48V
|
三路隔离
|
端子接线
|
|
|
DZE500S-12T051224
|
500W
|
12V(9-18V)
|
5/12/24V
|
三路隔离
|
端子接线
|
|
|
DZE500S-12T051212
|
500W
|
12V(9-18V)
|
5/12/12V
|
三路隔离
|
端子接线
|
|
|
DZE500S-12T050512
|
500W
|
12V(9-18V)
|
5/5/12V
|
三路隔离
|
端子接线
|
|
|
|

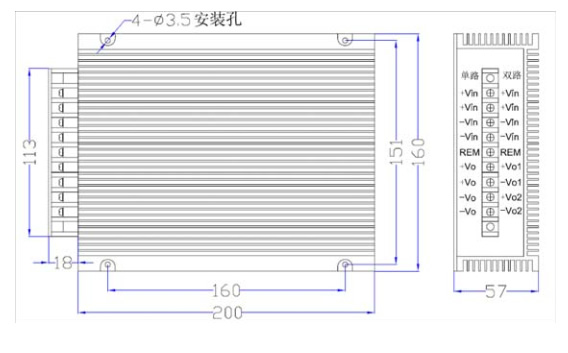

外型尺寸
|
